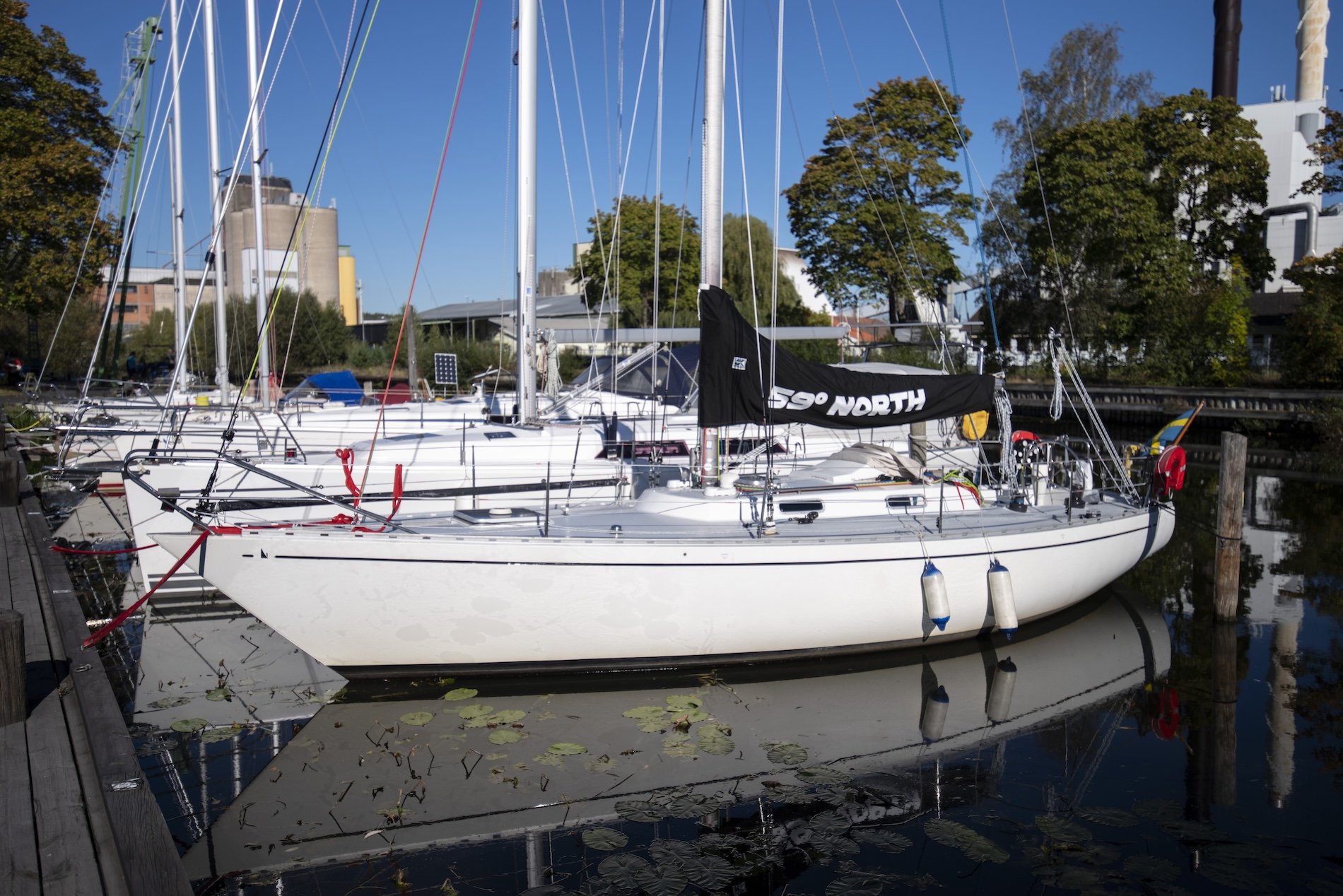

NORLIN 34 MK. 2
1977 Norlin 34 Mk. 2 'Special' For Sale
250 000 SEK

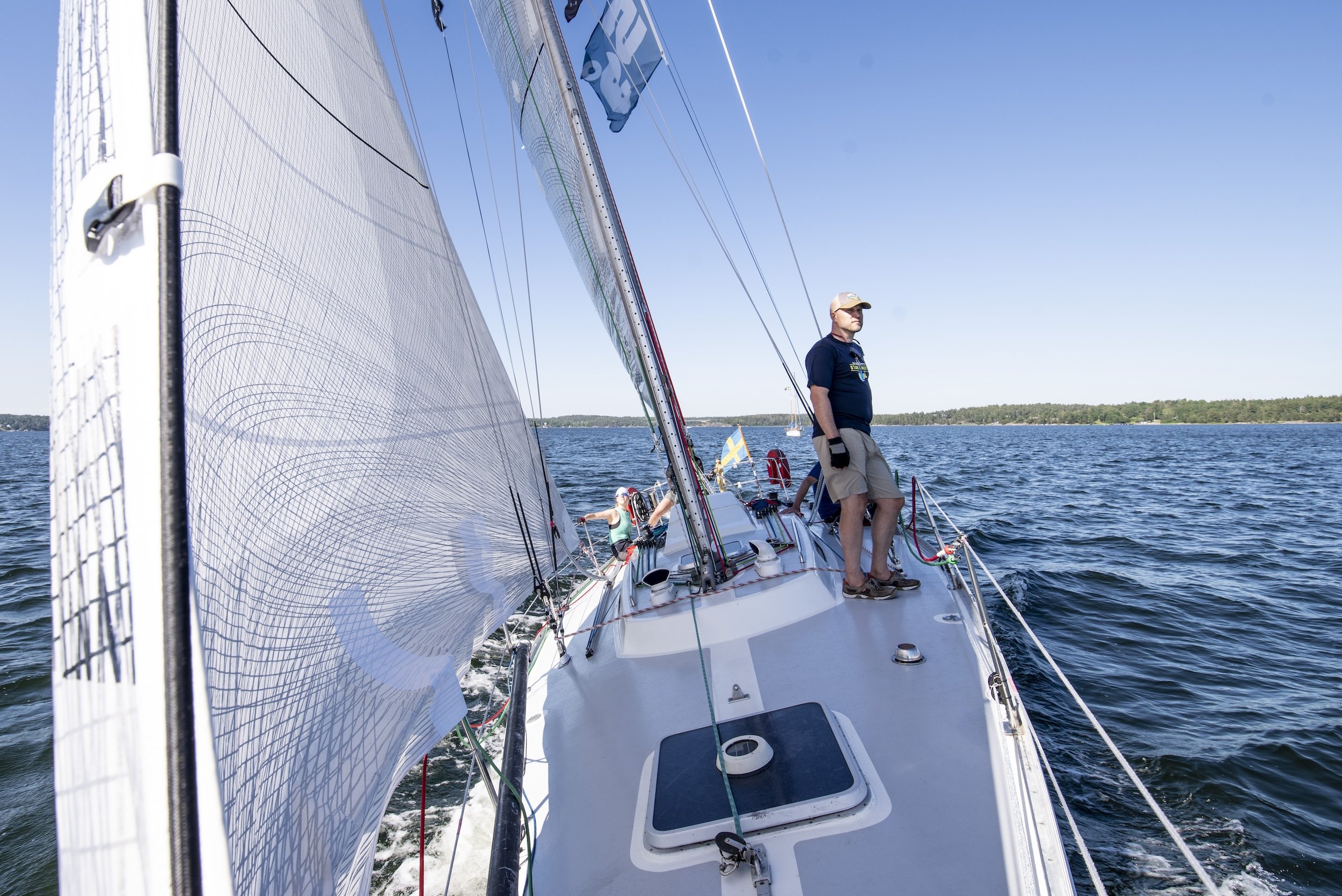

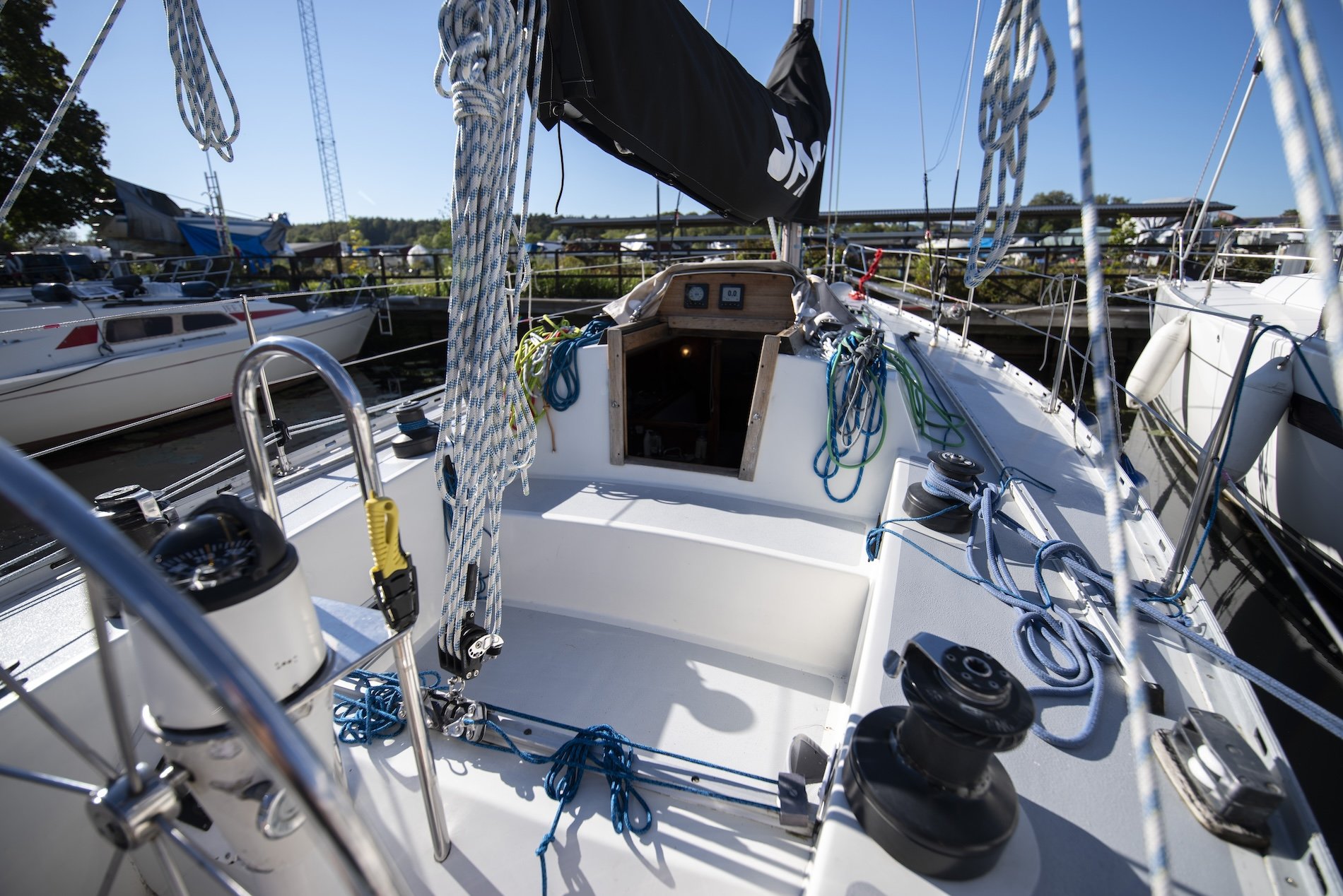

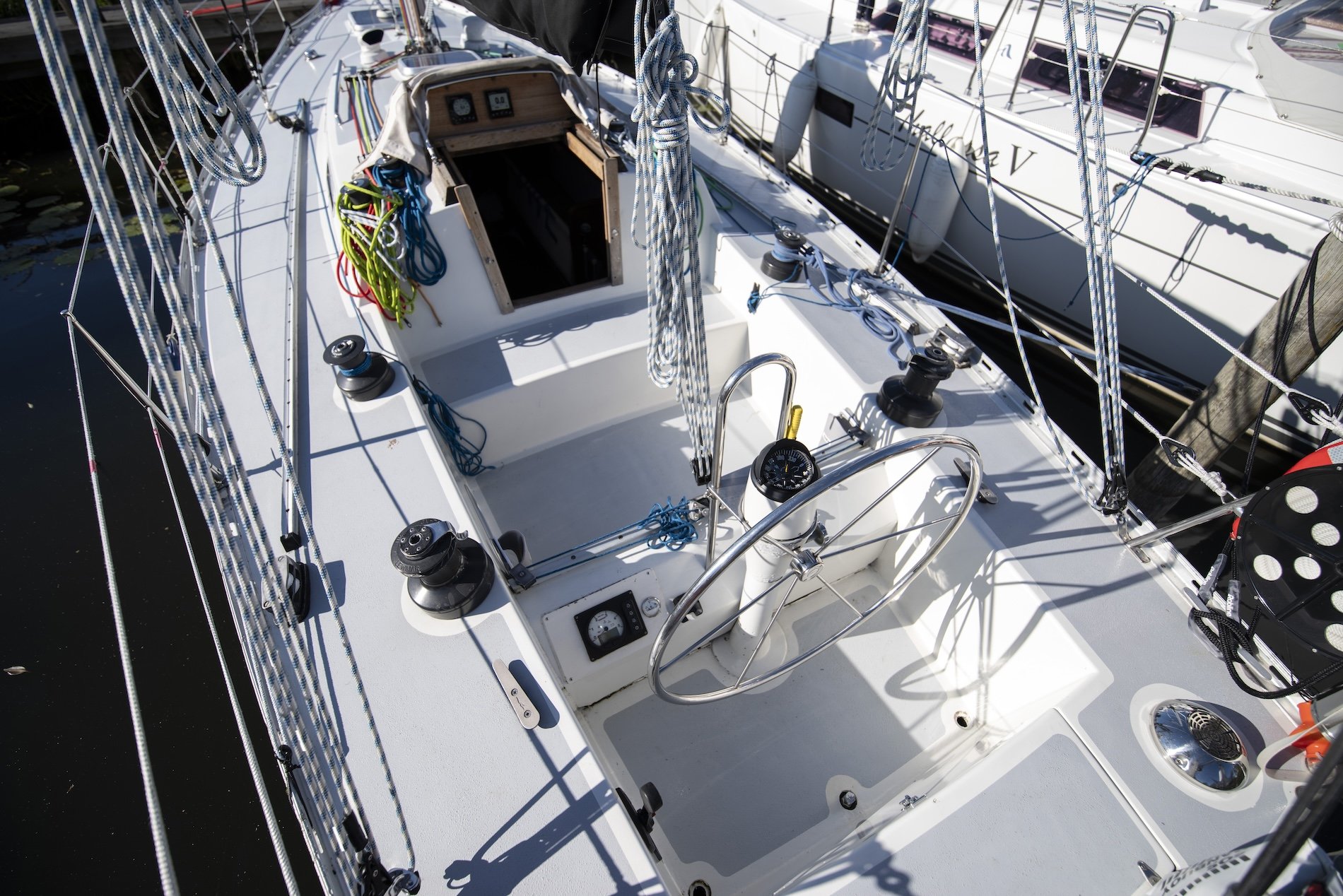

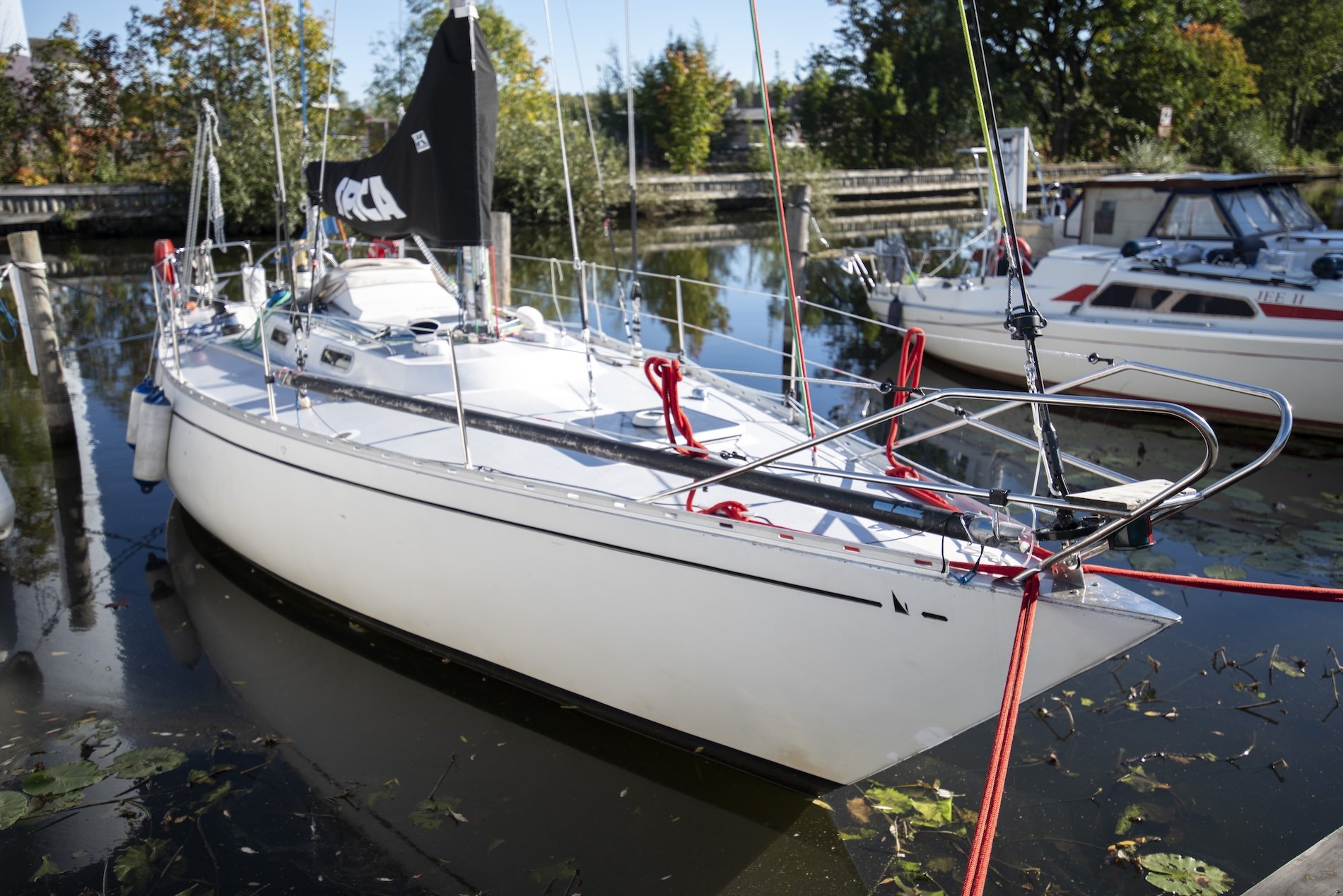

Built in Sweden especially for the Gotland Runt race for one of the owners of the yard who built her. Special flush foredeck and 'racing' style cockpit, with slightly modified interior. Awesome, simple family boat with a new-ish engine (160 hours) that we've outfitted with new sails & rigging and is one of the most fun boats I've ever sailed.
We've owned the boat since spring 2020 and have sailed her in the Stockholm Archipelago. 7th in Gotland Runt 2021, raced again in 2024 but abandoned due to bad weather. Stored indoors with her mast de-rigged every winter since we've owned her at our shed here in Enköping. Previous owner re-cored the side decks with Divinicell foam & painted the decks and coachroof and replaced the engine, among a few other projects. We've continually upgraded the boat every year we've owned her.
We recently bought an OE36 as our family boat, which we won't race, which is why we're selling the Norlin, and I will be very sad to see her go...
SPECS:
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 34.38 ft / 10.48 m
LWL: 28.21 ft / 8.60 m
S.A.: 582.00 ft² / 54.07 m²
Beam: 11.06 ft / 3.37 m
Displacement: 14,330.00 lb / 6,500 kg
Ballast: 5,291.00 lb / 2,400 kg
Max Draft: 6.53 ft / 1.99 m
Construction: Fiberglass
Ballast Type: Bolt-on Lead Keel
First Built: 1975
Builder: Solna Marine (SWE)
Designer: Peter Norlin

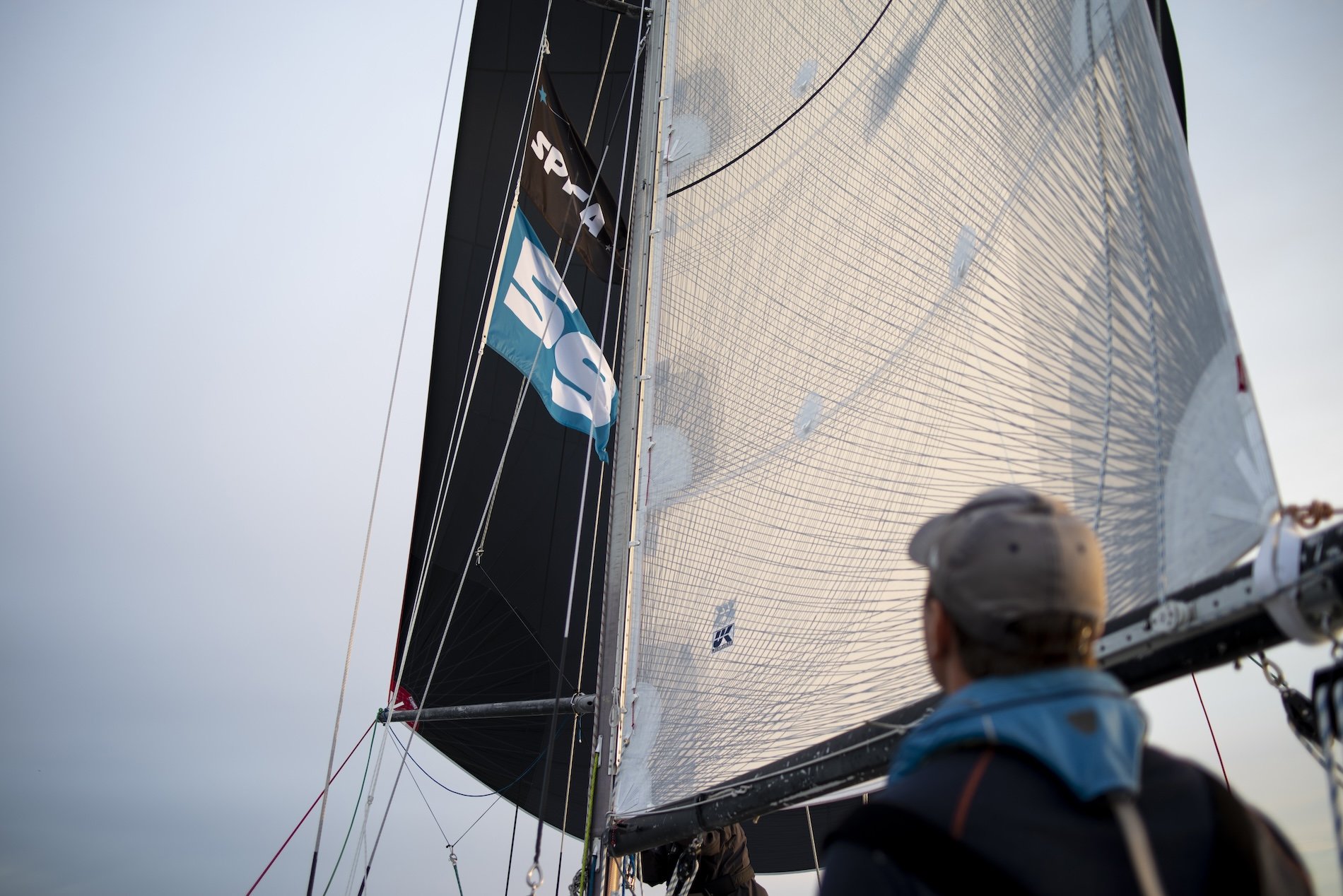

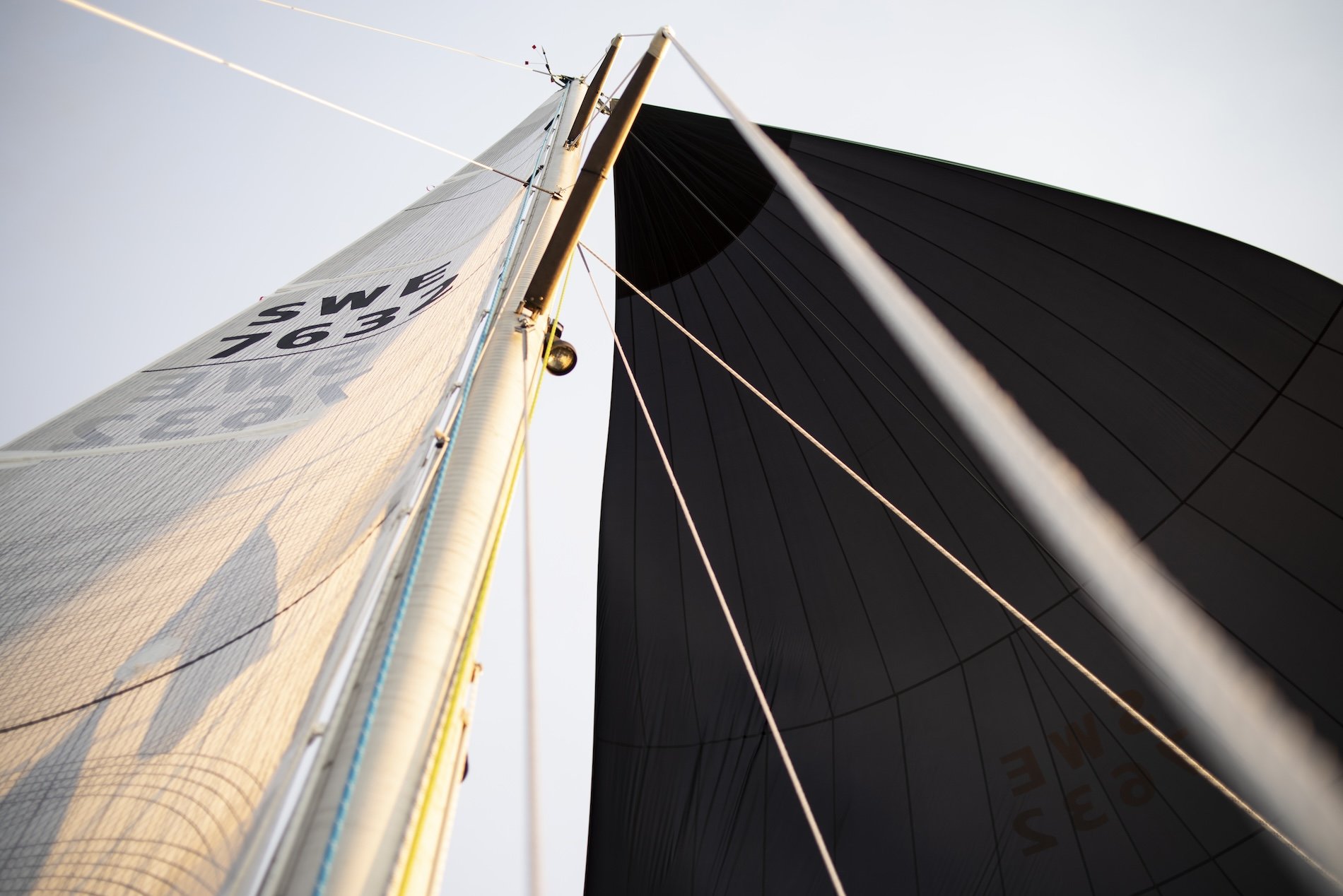

SAILS (UK Sailmakers Sweden, all new in 2021):
X-Drive Mainsail, 2 reefs, 4 battens
X-Drive Carbon Genoa #1
X-Drive Genoa #2
Dacron #3 Jib
Dacron Storm Jib (Orange)

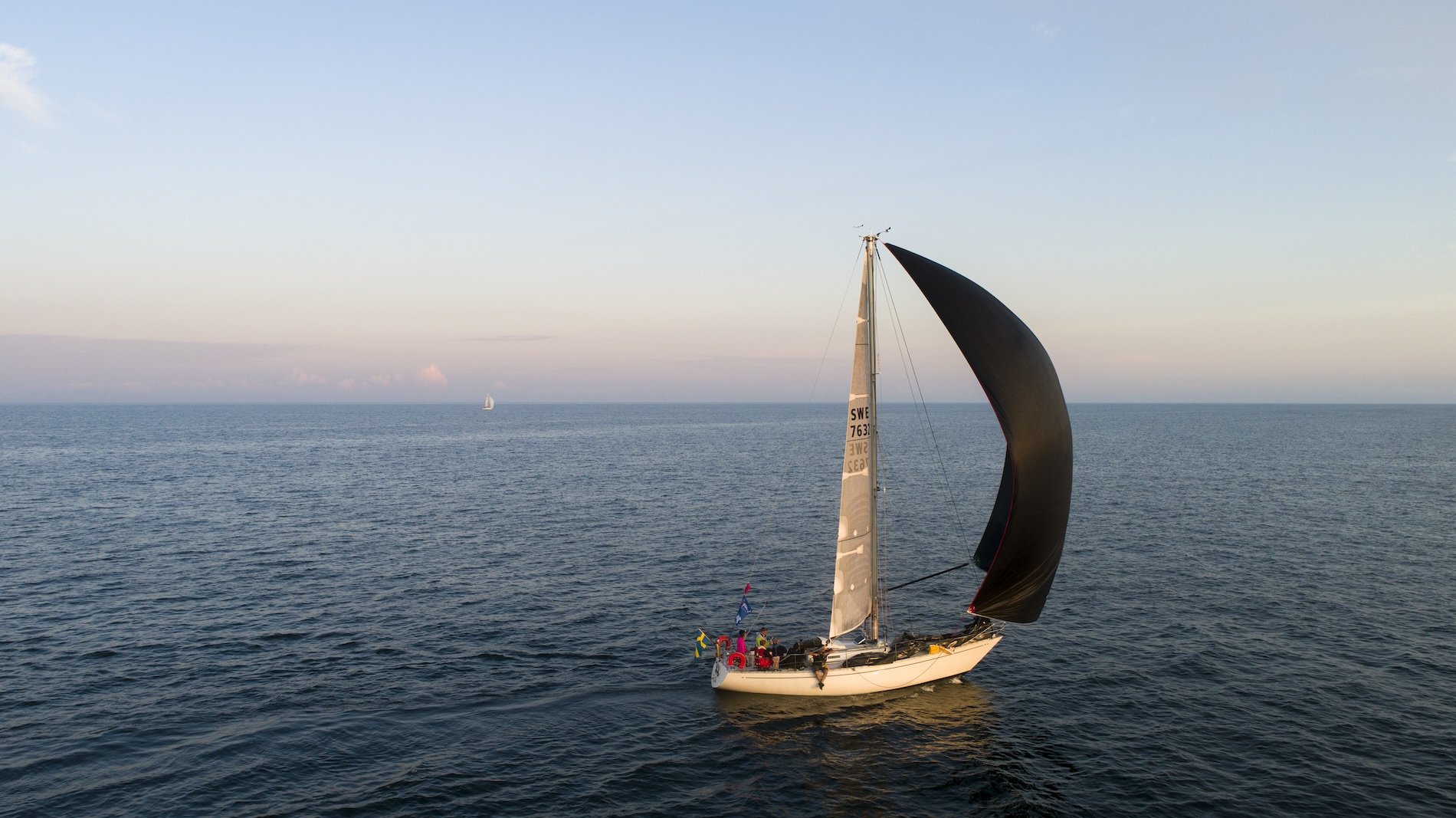

S2 Nylon Symmetric Spinnaker (Black)
S4.5 Nylon Symmetric Spinnaker (Pink)
RIG:
Double-spreader masthead rig, original Francespar, stamped 1977

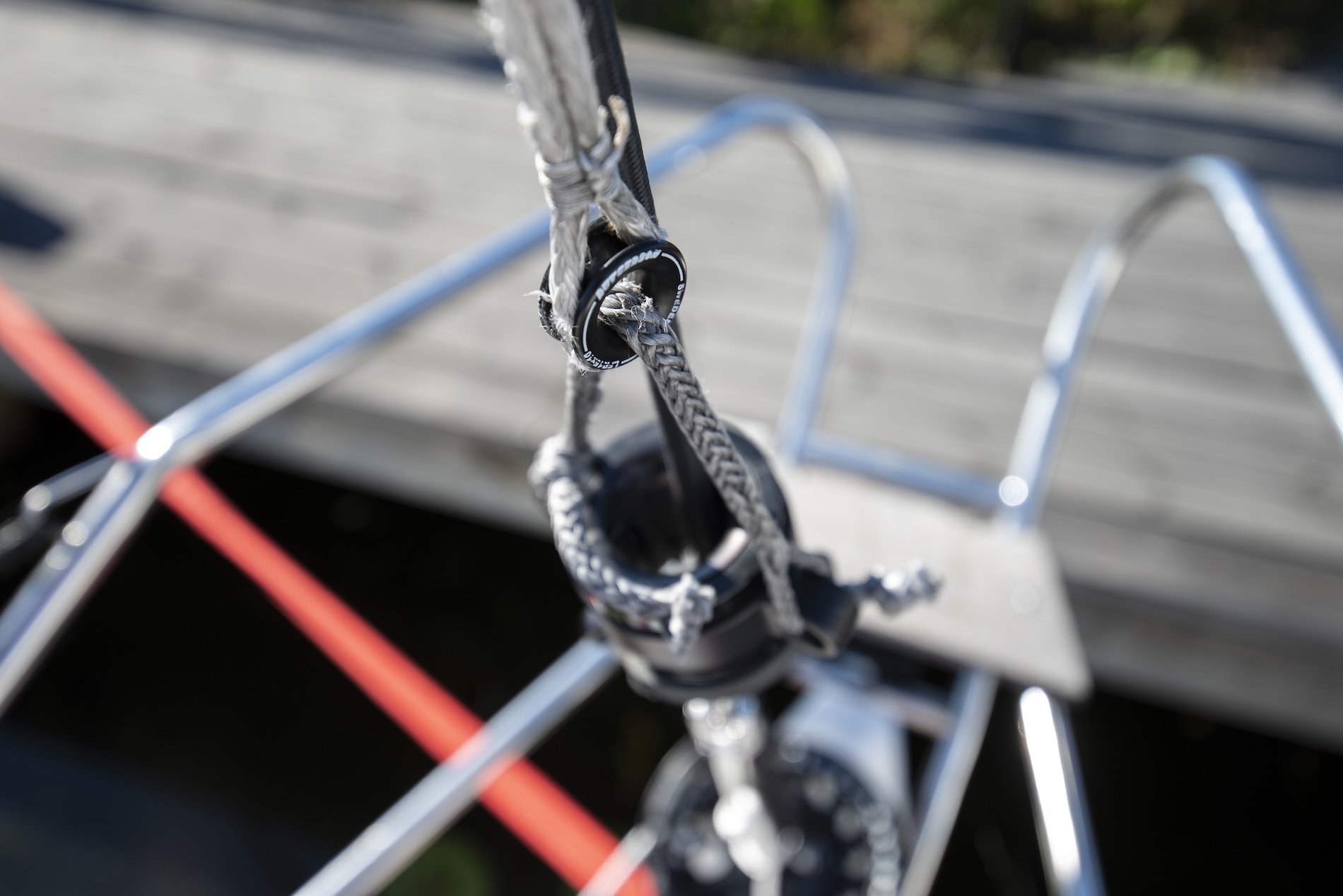

Standing rigging replaced in 2021 with Colligo Dux (continuous) and Hayn Turnbuckles
Colligo ELHF furling system for headsails (Also comes with Furlex standard roller furler and dacron genoa)
All dyneema running rigging from Liros, also replaced 2021
ENGINE:
Yanmar 3YM20, installed by previous owner, only 160 hours (100 hours since 2020 when we bought the boat).
Standard shaft drive with 2-blade folding prop, standard stuffing box.
ELECTRICAL & ELECTRONICS (ALL NEW IN 2021):
I replaced the entire electrical system myself in 2021. Ran new wiring to every fitting, installed new lithium batteries (200aH), new 70-amp alternator on the engine, with external Balmar MC-614 regulator, set for lithium charging.

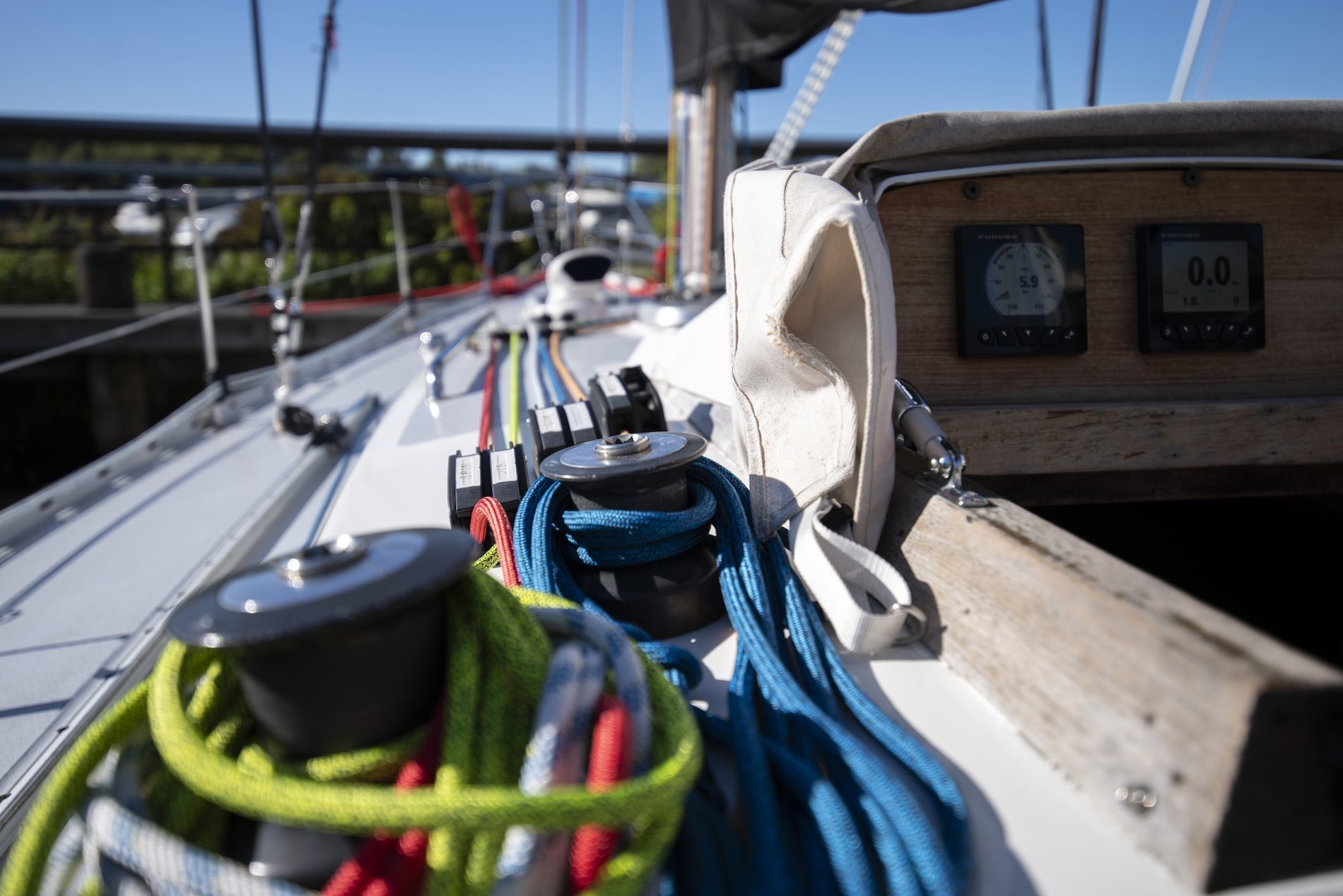

NMEA2000 backbone with 2x Furuno Fi-70 instruments at the companionway.
Vesper Cortex AIS Transponder & 'brain' for sending NMEA data over wifi (we've used iPads for all navigation software & AIS).
Older ICOM VHF
GALLEY:
Origo alcohol stove, works a charm and is very simple.
Small fridge with freezer pocket
Fresh and saltwater foot pumps in the galley (no pressure water onboard).
BOTTOM PAINT:
Sandblasted down to the gelcoat in 2021, epoxy coated and then painted with Hempel Silic One bottom paint (envrionmentally approved for Mälaren and Baltic).

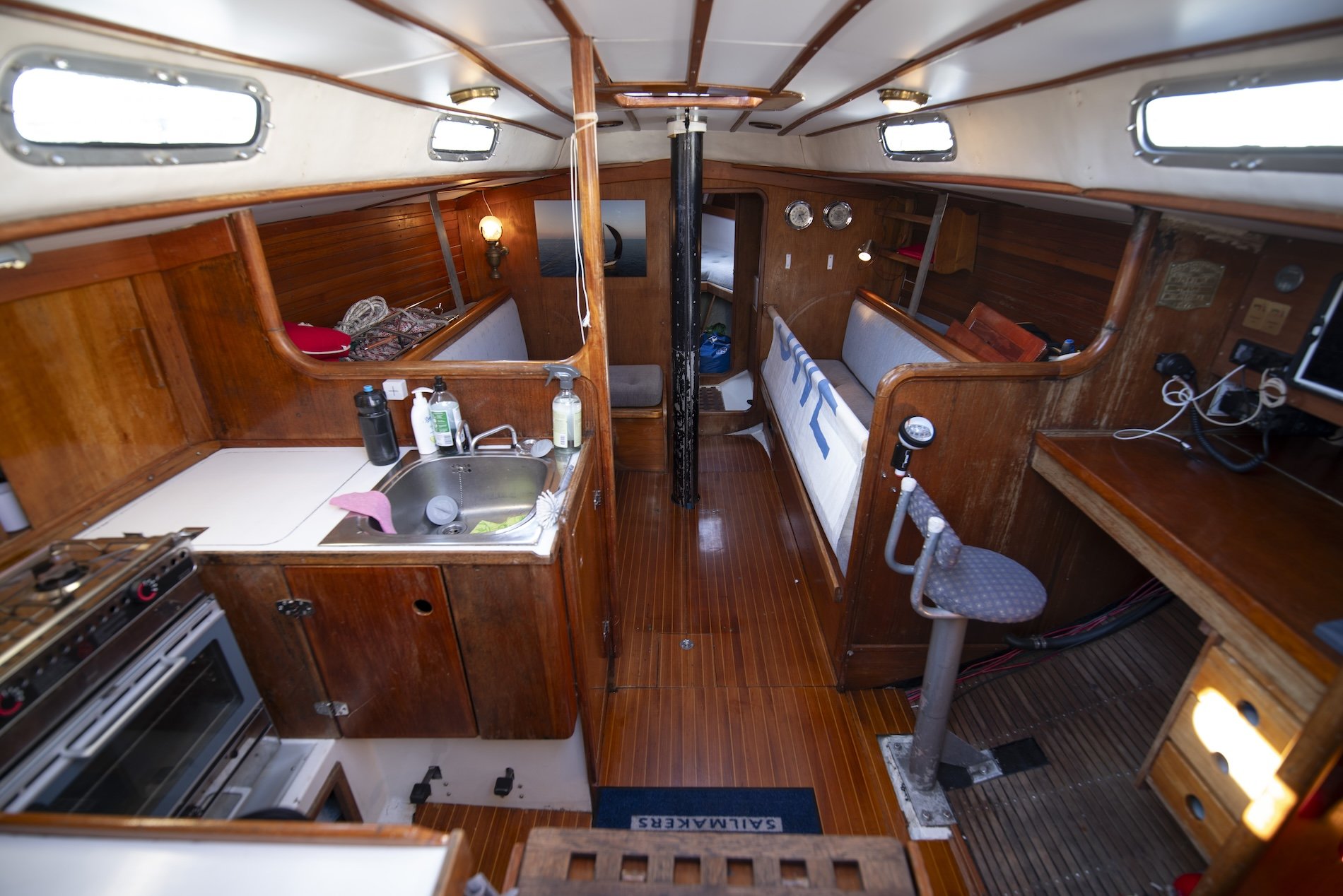

ACCOMODATION:

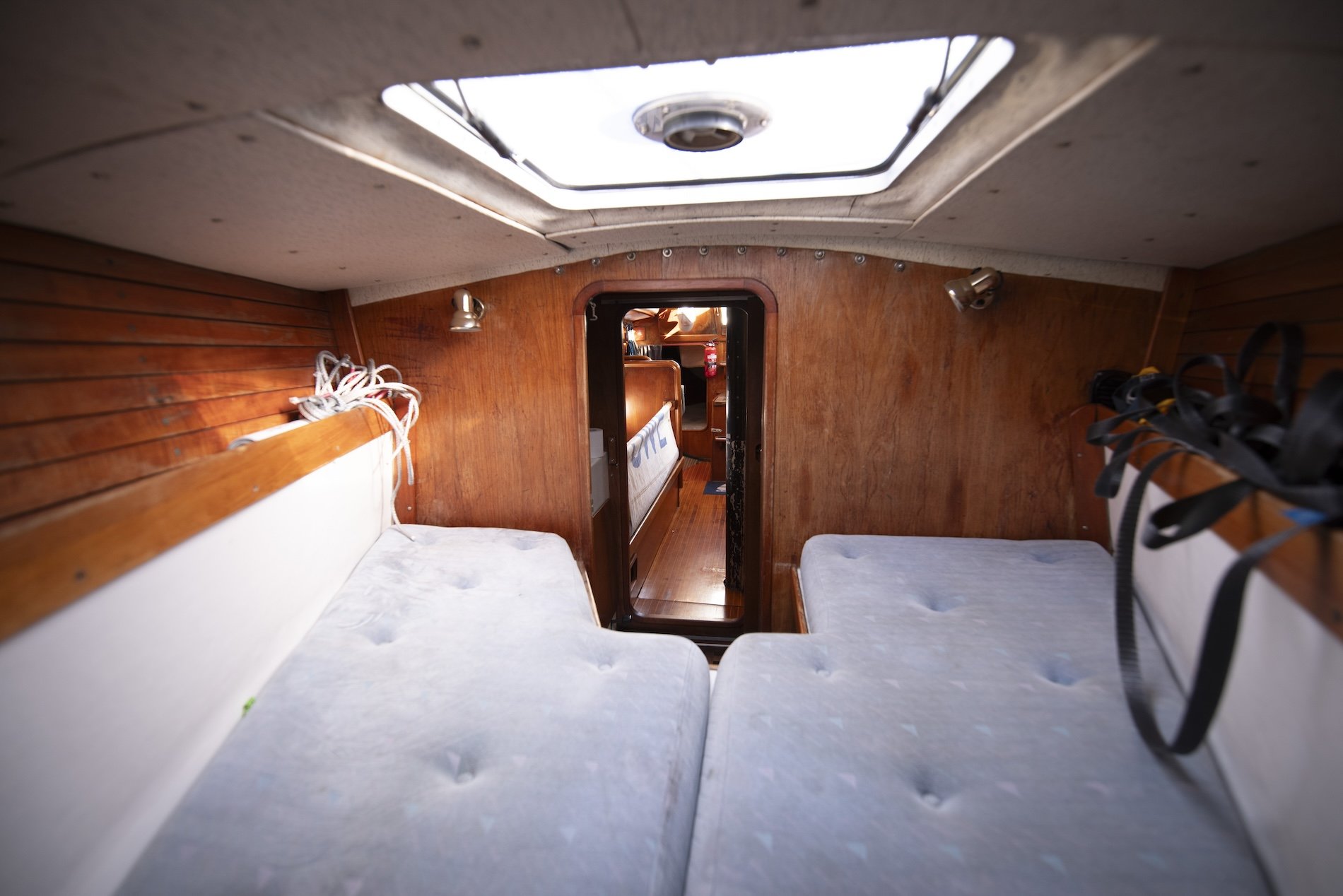

Forepeak forward with large 70cm opening hatch. We've kept sails up here, but there is room for 2 to sleep.
Pilot bunks outboard in the main salon, normally used for storage unless racing, good seaberths for racing, I'm 183cm and can easily fit.
Settees port and starboard, with central salon table (not shown in photos, has been removed for racing).
Large aft bunk under the cockpit, can sleep two or is excellent storage for sails/gear.

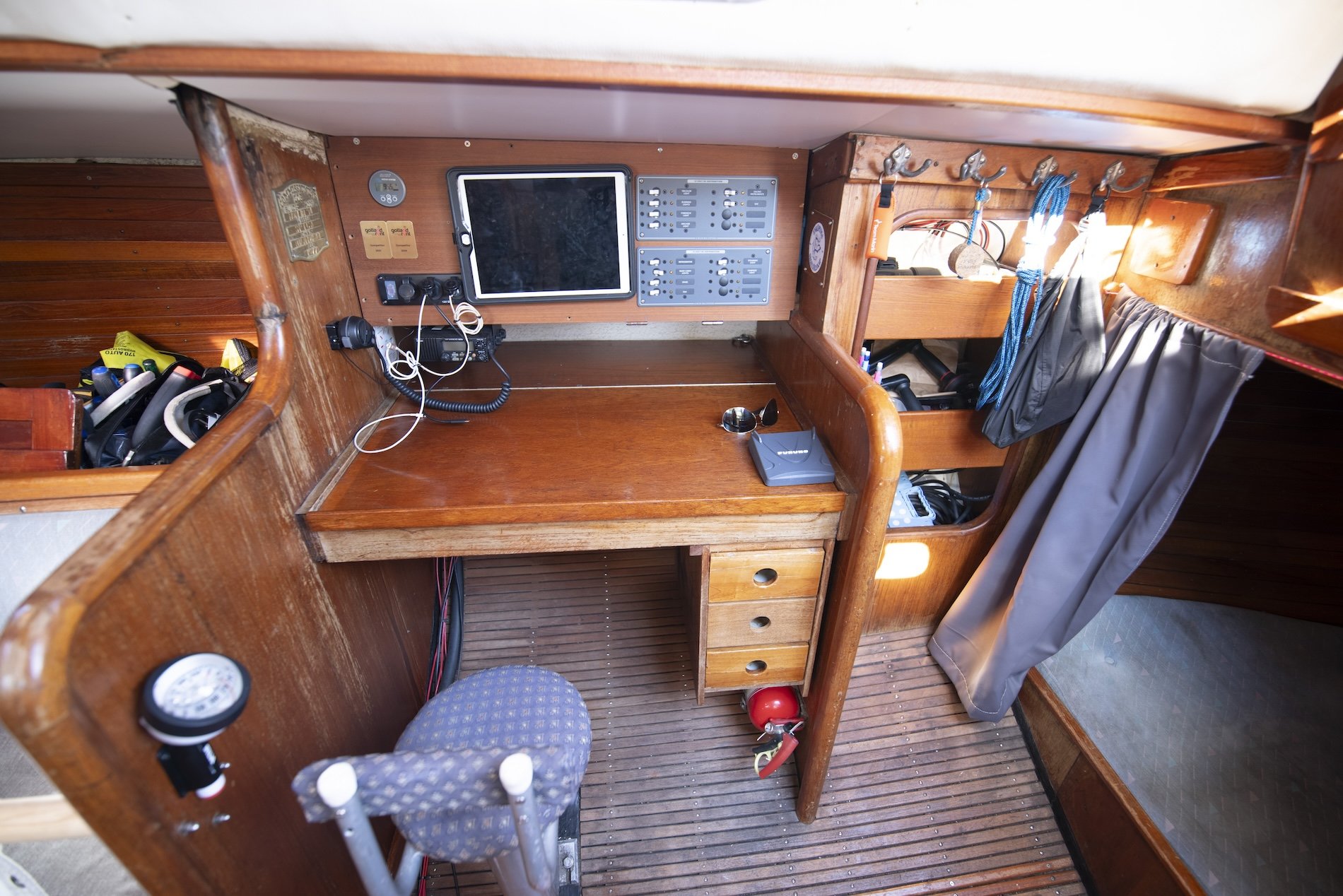

Small Nav station to starboard, galley to port.
Headroom only about 175cm in the salon, Mia & I cannot stand up straight fully and we're about 183cm.
